SWIVEL JOINTS

Swivel joints use hardened precision ground ball races and stainless steel seal faces to promise its long life.


LA-CS
Support structure is separate from product line.It can be together with vapour recovery line
Used for:oil and chemical products.LPG and low tempreatuer products
Handle type:hydraulic and manual

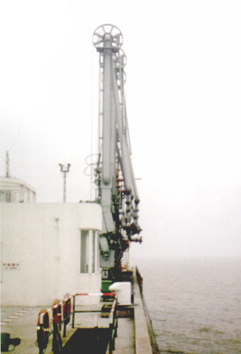

LA-CS PORT LOADING ARMS

LA-CS Port Loading Arms is separate support structure.The pipe and swivel joints are totally separate from the support structure and all external loads are taken directly by the support structure.
LA-CS Port Loading Arms is designed to be both hydraulic and manual type


Size:6" 8" 10" 12" 16"

Standard design incorporates:
  • Both support structure and product line are steel construction
  • Low torque swivel joints provide easy handing
  • Mechanical parking locks
  • Hangding Lines(only for manual type)
  • Counterweight balance sestem
  • High flow rates at low pressure drop
  • Suit to oil chemical and low temperature medium
  • Seal Material:--PTFE
                             --Special
Auxiliary Accessories:
  • Vapour recovery line
  • Alarm system
  • Insulating flange
  • Adjustable support jack
  • Emergency Release System
  • Manual Vacuum breaker
  • Automatic Vacuum breaker


LA-CS PORT LOADING ARMS
